Nanoelectronics and digital technology innovation hub Imec, Leuven, Belgium, has joined with researchers at Ghent University, Medtronic, and other partners in the European Union’s Cardis project, to develop a prototype medical device based on silicon photonics for the screening of arterial stiffness and the diagnosis of cardiovascular diseases such as arterial stenosis and heart failure. A clinical feasibility study with 100 patients has been successfully completed by the French Institut National de la Santé et de la Recherche Médicale (INSERM) at the Georges Pompidou European Hospital.

Cardiovascular disease (CVD) is among the leading causes of death globally. Early identification of individuals at risk allows for early intervention to halt or reverse the pathological process. Assessment of arterial stiffness is a key marker for hypertension, and assessment of arterial stiffness by measurement of aortic pulse wave velocity is included in the latest guidelines for CVD risk prediction. However, no tools are available today to easily screen a large number of patients for arterial stiffness in a general practitioner’s office. As a consequence, many individuals remain undiagnosed.

Cardis LDV

The Cardis CVD laser doppler vibrometer prototype.

For the Cardis project, Imec, Medtronic, and seven other partners, have developed a prototype mobile, low-cost, point-of-care screening device for CVD. The device aims for measurement in a fast, reproducible, and reliable way with minimal physical contact with the patient and minimal skills from the operator. The operating principle of the device is laser doppler vibrometry (LDV), in which a very low power laser is directed toward the skin overlying an artery. The skin’s vibration amplitude and frequency, resulting from the heart beat, are extracted from the Doppler shift of the reflected beam. The device includes two rows of six beams, thereby scanning multiple points on the skin above the artery in parallel.

At the heart of the system is a silicon photonics chip containing the optical functionality of the multibeam LDV device. The Cardis chip was designed by the Photonics Research Group, an Imec laboratory at Ghent University, prototyped through Imec’s silicon photonics technology platform, and implemented using advanced optical packaging approaches developed at the Tyndall National Institute in Ireland. The system was then integrated into a handheld device and validated for human use by Medtronic.

A clinical feasibility study at the Georges Pompidou European Hospital has collected a substantial clinical dataset, both from healthy subjects as well as from patients with cardiovascular conditions. The quality of the device readings was found to be very good and adequate measurement results could be obtained in all subjects. Also, the measurement data and variability within sessions were in line with data and variability acquired by reference techniques. A full dataset is now available and in-depth analysis will be performed both at INSERM and at the biomedical engineering department of Ghent University with the support of Medtronic. Further clinical feasibility studies are planned at the Academic Hospital of Maastricht.

“The Cardis device was well accepted by all patients, and it was considered useful and well tolerated,” says Pierre Boutouyrie, MD, the cardiologist in charge of the feasibility study. “Feasibility of signal acquisition is excellent, since a useful signal was acquired in 100% of the patients. Tolerance was excellent too; the time to get useful signals was less than 10 minutes, and patients barely noticed that a measurement was performed.”


Roel Baets, PhD, University of Ghent.

“Silicon photonics is a powerful technology that combines the unique sensing capabilities of photonics with the low-cost and miniaturization capabilities of silicon semiconductor technology,” says Roel Baets, PhD, head of the Imec Photonics Research Group. “It’s exciting to know that our silicon photonic chip and prototype medical device hold the promise to change the lives of so many patients with cardiovascular diseases.”

In a next step, a small series of the device will be produced to perform a clinical feasibility study on a larger group of patients and over a longer period of time. If this feasibility study demonstrates the ability of the technology to detect cardiovascular diseases at an early stage, high-volume production can be initiated. One of the benefits of the silicon photonics technology is that at high volumes, the chip can be produced at low cost.

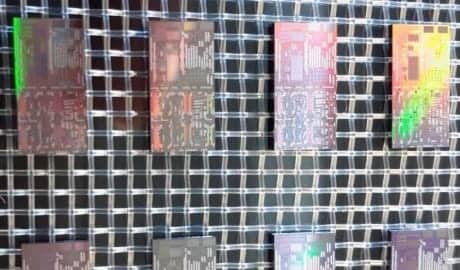

Featured image: Silicon photonics chips supply the optical functionality of the Cardis multibeam laser doppler vibrometry device.
